HEATVIS

A Stripe Film is an insulation PET film of an off-white color. Compared to the clear films of
competitors, our Stripe Films are a more durable and reliable base of carbon printing.

The special design of silver electrodes prevents sparks.

The characteristics of Stripe Film

The HEATVIS that is completed with the highest level of technical excellence

The Stripe Film of HEATVIS is constructed by applying carbon coating on a PET film and emits heat through the carbon layer. The product is realized through the technology that enables carbon painting of 10-micron or less in thickness. The film is heat-treated at 150 ℃ or higher, and unless it is cut up using scissors, the film can be used almost indefinitely.

HEATVIS, a heating film that lasts almost forever

HEATVIS Stripe Film is completely insulated from any contact with air or moisture due to special insulation treatment.
This makes it possible to use these films almost indefinitely as futuristic heating elements that can be installed on ceilings or walls.

Why Choose HEATVIS?

HEATVIS has heavily invested into the development of "healthy" and "more energy efficient" heating solutions for more than 20 years.

It's discovered that conventional heating systems working by air cause allergic issues by air dust circulation, dry skin and sore eyes.
To provide the solution not only for heating but also for health benefits, HEATVIS has worked with a few key university labs as well as an in-house R&D team.
HEATVIS' specially designed Nano Carbon Technology is designed and proven to make an exceptional effect of far-infrared rays offering significant health benefits.
The technology backed by far infrared improves blood circulation, metabolism and skin breathing!

HEATVIS' carbon heating film is designed to emit higher temperature with less input.
The heating film emits higher temperature in comparison with the existing heating films having the same wattage.
It means customers can use the lower wattage product for the same target temperature and ultimately make the users reduce energy/utility bills.

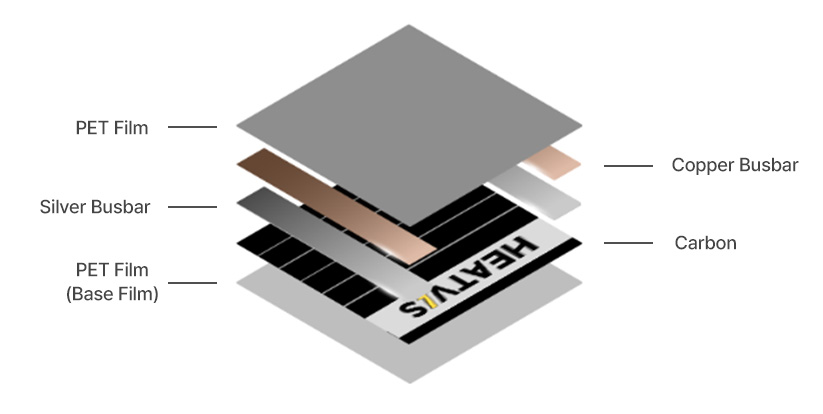

HEATVIS The schematics of Stripe Film

HEATVIS The specification and dimensions of Stripe Film

Model name	Width	Thickness	Packaging unit	Weight	Wattage Max.	Temp.
HV-SF-305	500	0.338	100m	25.3kg	110W/m	70°C
HV-SF-308	800	0.338	100m	39.8kg	180W/m	70°C
HV-SF-310	1000	0.338	100m	48.8kg	220W/㎡	70°C
