HEATVIS

With the special insulation technology using adhesives, the product is protected from
contact with air and moisture, making it highly reliable and resistant to moisture.

Silver electrodes are formed after carbon printing so that sparks and defects of the products are prevented,
giving the product the advantage of a safe structure.

The PET base film is coated with carbon, which is the heating element. Then, on both sides of the film, silver and copper coating is
applied to form the electrodes. This is followed by the application of the PET film, which is the material to realize insulation, flame resistance,
and water-proofing. This PET film is also reinforced by the fabric material of high strength and elasticity, and this multi-layer structure provides
our plane-shaped heating element high strength and good resistance against heat.

The characteristics of All Coated Films

HEATVIS, the product of the most advanced technology

Our HEATVIS All Coated Film is produced by coating PET film with carbon to generate heat. The process requires high-precision coating to the level of 10 microns.
After 72 hours of heat treatment at 70 ℃, our highly-advanced heating film can be used nearly indefinitely until you cut it up with scissors.

HEATVIS, a heating film that lasts almost forever

Our HEATVIS heating film is of a specially engineered structure that is composed of two external layers of PET films and the reinforcing lamination material in the middle. With specialwater- proofing treatment, this futuristic product can be used almost indefinitely and installed on your ceiling or floor for heating purposes.

Why Choose HEATVIS?

HEATVIS has heavily invested into the development of "healthy" and "more energy efficient" heating solutions for more than 20 years.

It's discovered that conventional heating systems working by air cause allergic issues by air dust circulation, dry skin and sore eyes.
To provide the solution not only for heating but also for health benefits, HEATVIS has worked with a few key university labs as well as an in-house R&D team.
HEATVIS' specially designed Nano Carbon Technology is designed and proven to make an exceptional effect of far-infrared rays offering significant health benefits.
The technology backed by far infrared improves blood circulation, metabolism and skin breathing!

HEATVIS' carbon heating film is designed to emit higher temperature with less input.
The heating film emits higher temperature in comparison with the existing heating films having the same wattage.
It means customers can use the lower wattage product for the same target temperature and ultimately make the users reduce energy/utility bills.

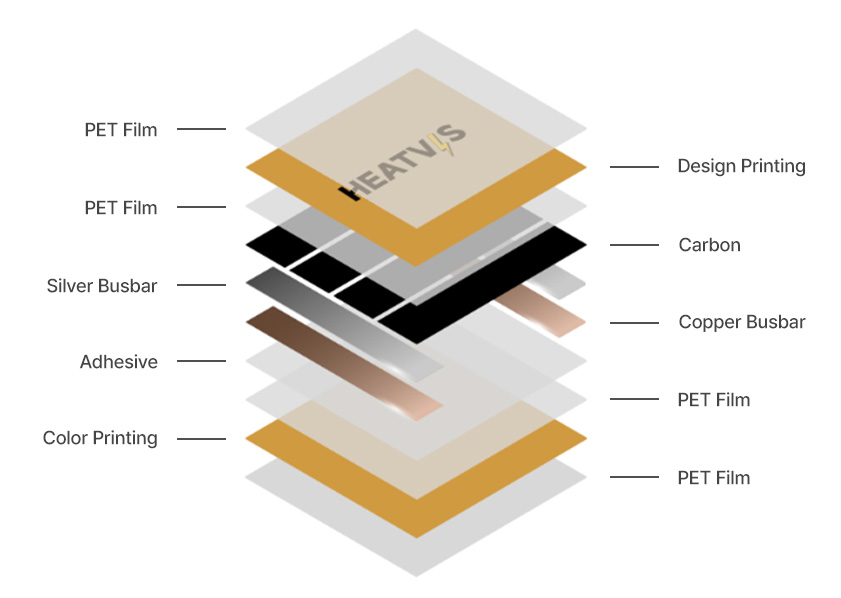

HEATVIS The structural diagram of a All Coated Films

HEATVIS The specification and dimensions of All Coated Films

Model name	Width	Thickness	Packaging unit	Weight	Wattage Max.	Temp.
HV-ACF-410	1000	0.45	75m	47.4kg	220W/㎡	100°C
HV-ACF-408	800	0.45	75m	40.8kg	180W/m	100°C
HV-ACF-405	500	0.45	100m	33.5kg	110W/m	100°C
