Heating Panel

Radiant heating panels work by transmitting heat similar to natural sunlight,
creating a warm and comfortable space.

Advantages of HEATVIS Heating Panels

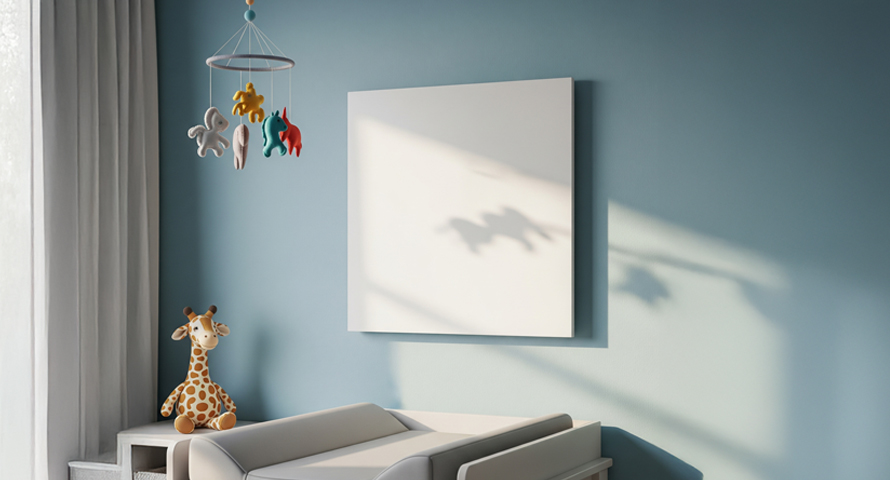

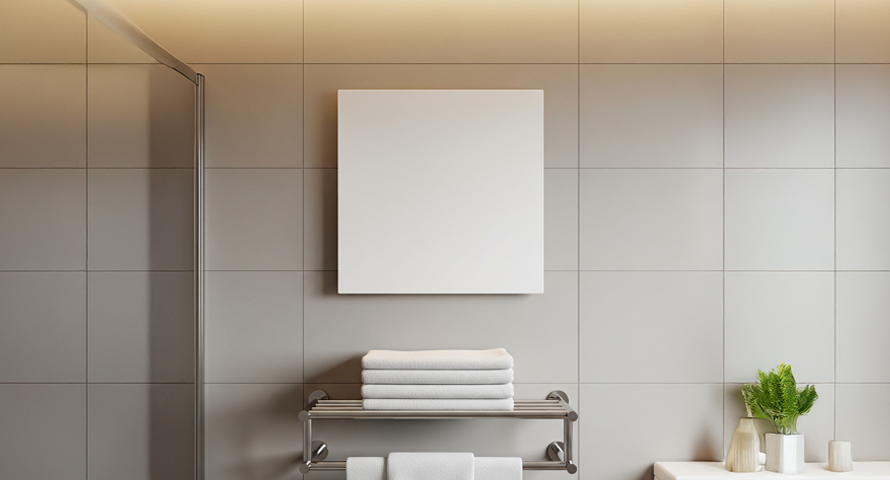

Easy to use like a picture frame
without any separate construction

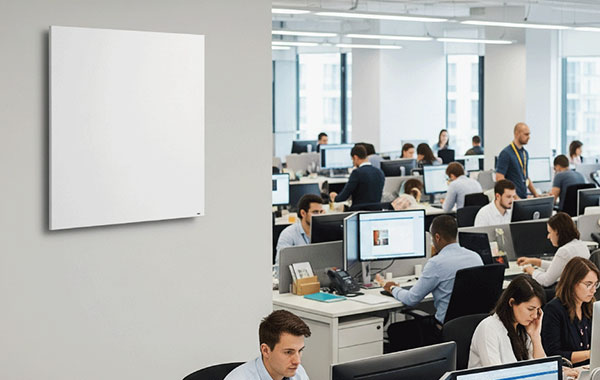

It can be easily hung on a wall like a picture frame—no
construction needed—making it ideal for offices, homes,
churches, stores, or camper vans. Within 5 minutes, the panel
reaches its peak temperature (about 95 ℃), evenly releasing
far-infrared heat for fast, consistent warmth.

Banning Fossil Fuel Heating
A First Step Toward Eco-Friendly Heating
technology

Starting in 2025, the EU will end subsidies for fossil fuel
boilers (gas, oil, etc.). Policies also aim to ban the sale of
stand-alone gas boilers by 2029, with the Energy
Performance of Buildings Directive (EPBD) requiring a full
phase-out of fossil fuel boilers by 2040.

High-efficiency heating and
various safety devices

After installation, maintenance is nearly zero, saving over 30%.
The panel includes built-in overheating protection that cuts
power if temperatures exceed the limit.
It also holds IP certification (IEC standard), ensuring dust
and water resistance and blocking objects over 12.5 mm.

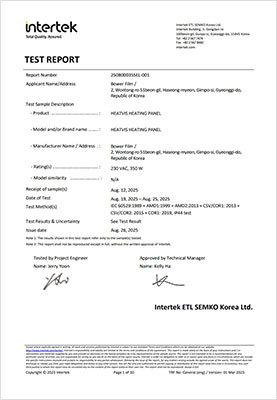

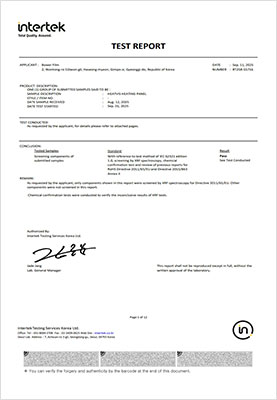

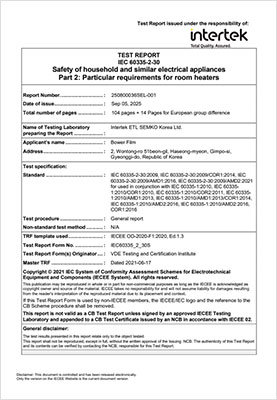

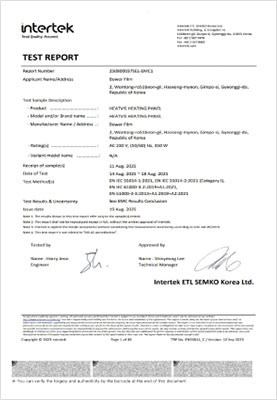

CE and IP44 international certifications

  • CE - LVD
  • CE - EMC
  • CE - RoHS
  • CE - IP44

Safety of HEATVIS products

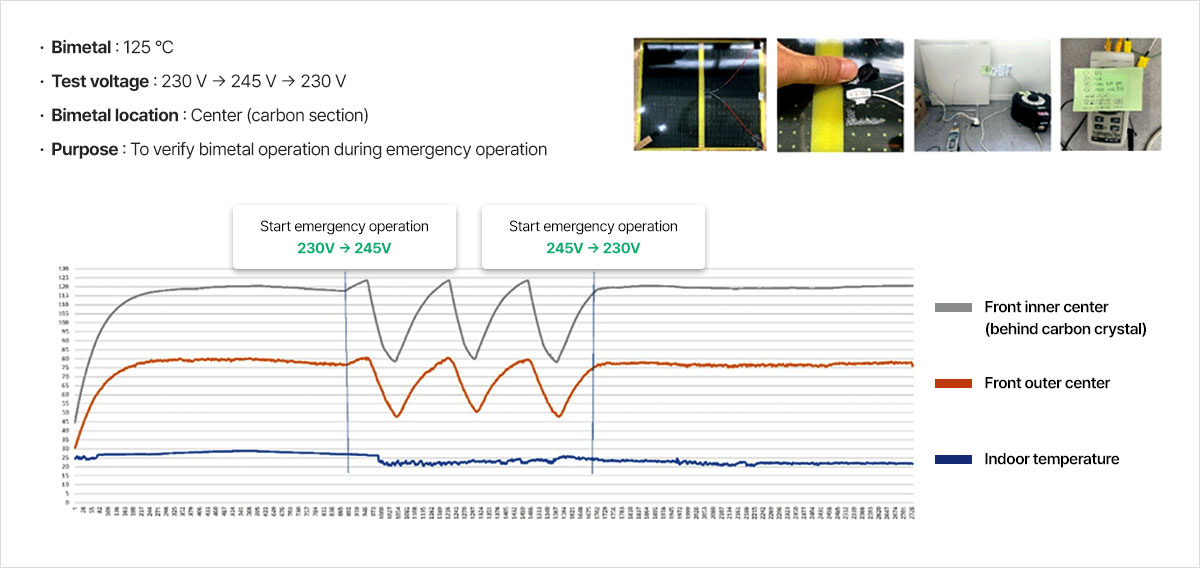

Experimental Process & Result

During normal operation at 230V, the bimetal does not activate. However, during an emergency condition at 245V, the bimetal activates and cuts off the power supply.
Once the voltage returns to the normal level of 230V, the bimetal deactivates and allows normal operation.

This safety mechanism ensures that the bimetal activates only in emergencies,
protecting the product and preventing burns to the user.

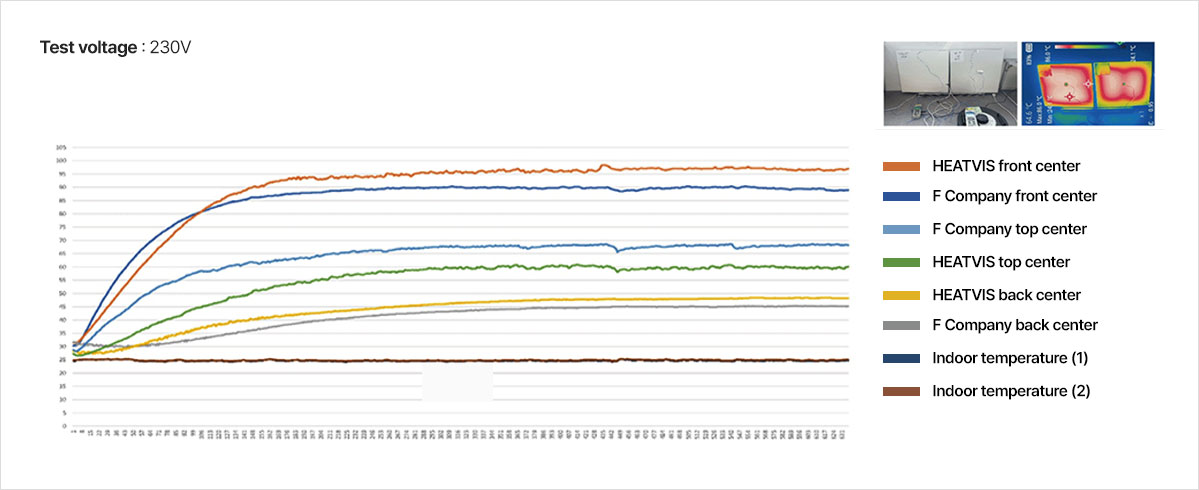

Comparison of temperature rise
with representative products from Company F
(Europe's largest supplier)

Experimental process

Our product's central maximum temperature was measured to be approximately 7 degrees higher than that of competitors.
The temperature at the top front was measured to be approximately 69 degrees, approximately 9 degrees higher than that of competitors.

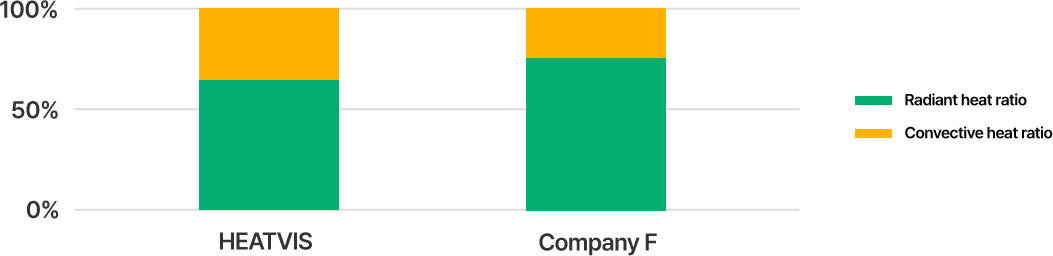

HEATVIS vs Company F Heat ratio comparison

Conclusion

Our product appears to generate more convection heat than Company F. Convection heat is also a source of energy for indoor heating,
and our product appears to have an appropriate proportion. In terms of total energy dissipation, our product generates sufficient heat compared to competitors,
contributing to energy savings.While our product has a higher peak temperature, it takes a similar 24 minutes to reach the peak temperature,
suggesting our product is more efficient.

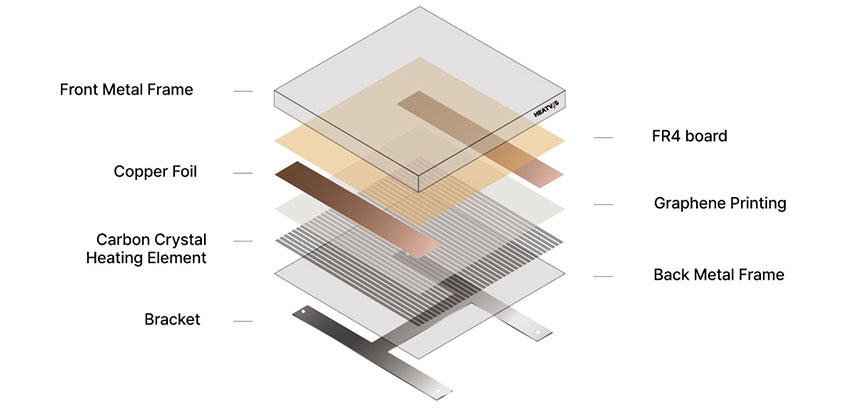

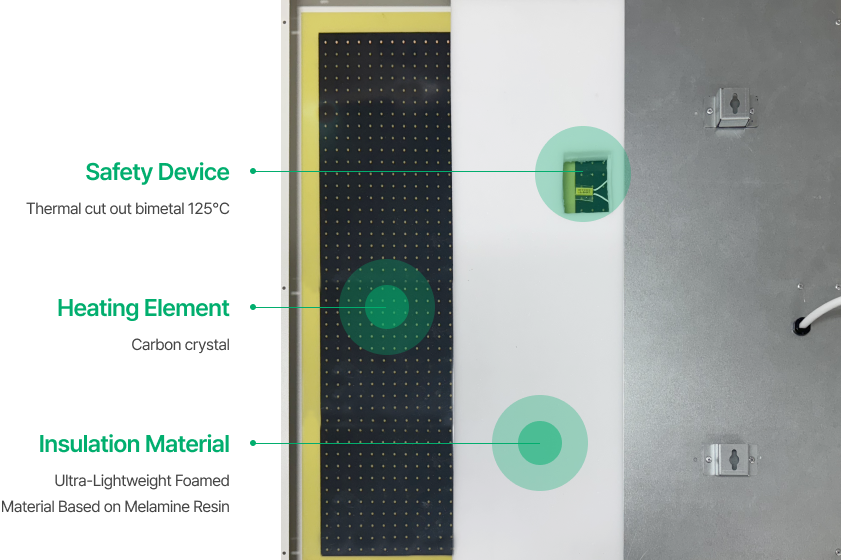

HEATVIS heating panel structure

The specification and dimensions of Heating Panel

(Single-phase 220V, 60Hz)
Model Power Consumption (W) Width (W/mm) Height (H/mm) Thickness (H/mm) Weight (kg) Heating area (㎡)
HV-HP-350 350 W at 230 V 600 600 36 5.82 2~4
HV-HP-700 700 W at 230 V 600 1200 36 11.3 4~6
HV-HP-1000 1000 W at 230 V 800 1200 36 14.7 8~10
Depends on insulation condition

Technical Specifications

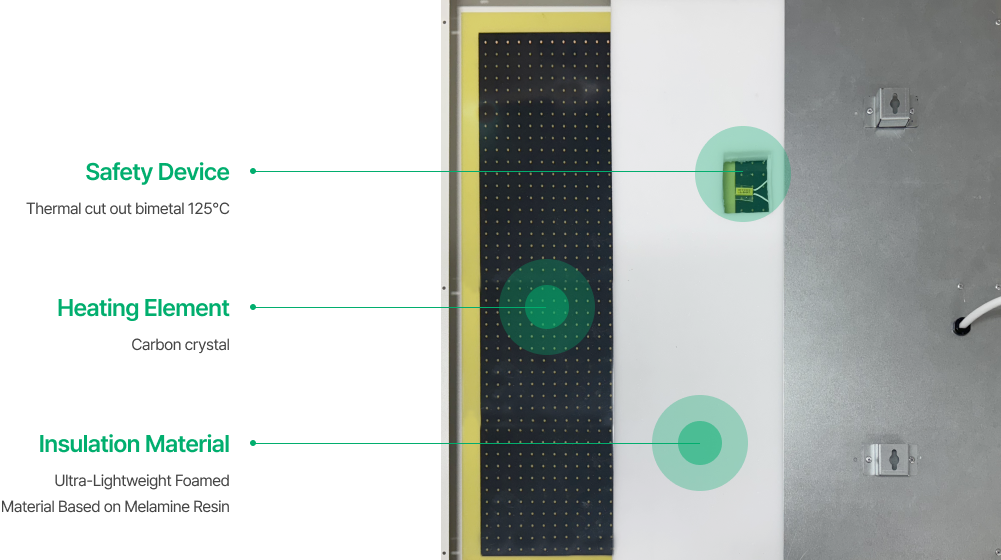

  • Heating Element : Carbon crystal

  • Insulation Material : Ultra-Lightweight Foamed Material Based on Melamine Resin

  • Surface Temperature : Max 95℃ (±5℃)

  • Front Panel Material : Power coated GI (Galvanized Iron)

  • Insulation Fire Rating : V-0 UL94

  • Rear Panel Material : EGI (Electro Galvanized Iron)

  • IP Grade : 44

  • Certifications of Bimetal : UL, VDE, CQC, KC

  • Product life : Over 100,000 Hr

  • Safety device : Thermal cut out bimetal 125℃
